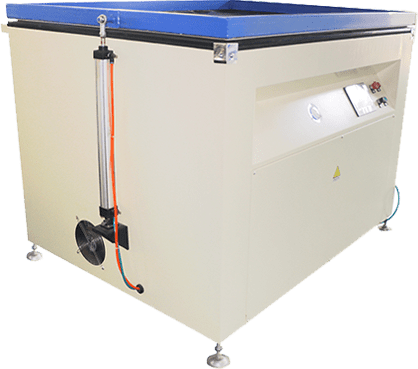

Full Automatical Precision Intergral Type Screen Stretching Machine
Widely used in high-precision and high-tension mesh stretch nets in the fields of solar energy, photo-voltaic industry, circuit board electronics industry, LCD touch screen industry,glass printing, High end electronic industry and ceramic printing, dyeing textile printing and so on.
Including: high-strength stretch mesh of any straight stretch screen including polyester, nylon, stainless steel mesh.
The lock net is convenient and quick, the force is even, and the net is accurate.
Through the precision 2.5-D detection equipment,calculated the optimal force parallel distance
between the cylinder pressure and the traction friction of the mesh!
Realized tension (0-60N) without sliding net, no gap, no dislocation deformation.
Model Name: LY2555
Equipment Parameter
Main technical parameters | 2500*5500mm |
External size | 2700*6300*1000mm (W *L* H) |
Maximum pulling area | 2500*5500MM |
Minimum pulling area | 1500*5500MM |
Tension error Max | ±0.5N |
Motor driving motion mode | Horizontal gear reduction motor; Speed ratio 1:50 *2P |
Total power | 5KW |
Working power supply | 3AC/380V/50Hz |
Weight | 1500kg |
Features
1, Equipped with PLC microcomputer control and intelligent memory control system, intelligent
human-machine exchange interface, easy to operate, ensuring the stretch movement is accurate,
stable and efficient.
2, High-strength steel mixed material for body structure, automotive grade tapered drive components.
3, Adopted the most scientific and reasonable integrated netting principle, the rotary lock cylinder
automatic self-locking net device.
4, X, Y column stretch net work in the full data display, accurate to micron (um) level, open intelligent choreography memory mode, to meet different types and different specifications of mesh stretch net, stretch net travel parameters can be arbitrary Take care of the memory, fine-tune the humanization and automation. Maximize the efficiency of the mesh! Maximizes the simplification of the stretcher operation.
5. The “Bridge Bridge Law” to promote the most reasonable stretching concept. During the process of stretching the net, when the mesh is subjected to the force of the X and Y columns at the same time, the four right angles of the machine have the function of automatically buffering the balance force, so that the error between the force and the force can quickly reach the bridge-type mitigation supplement, and gradually reach The required tension. The maximum guarantee is that the mesh cloth is not easy to explode or break the net while being subjected to the ultimate tension.
6. The whole machine is equipped with multiple operation protection devices. The circuit and air circuit are smart and reasonable in design, and the power is small. In line with the trend of low energy consumption. Different sizes are accepted for professional requirements in different industries.
7. Equipped with a more user-friendly digital display of clips, with auxiliary accessories such as net pockets and foot switches, the mesh does not need to be cut, the initial placement of the mesh is more precise, saving manpower; when the required tension does not exceed 40N, the optional automatic silent air pressure system is available.
8. Equipped with an automatic top network system. The lifting stroke distance, air source pressure, etc. can be adjusted arbitrarily. The top network is reasonable and easy to operate.
